CAPTAIN MORGAN


2024 · New York City
3D Technical Design / Production

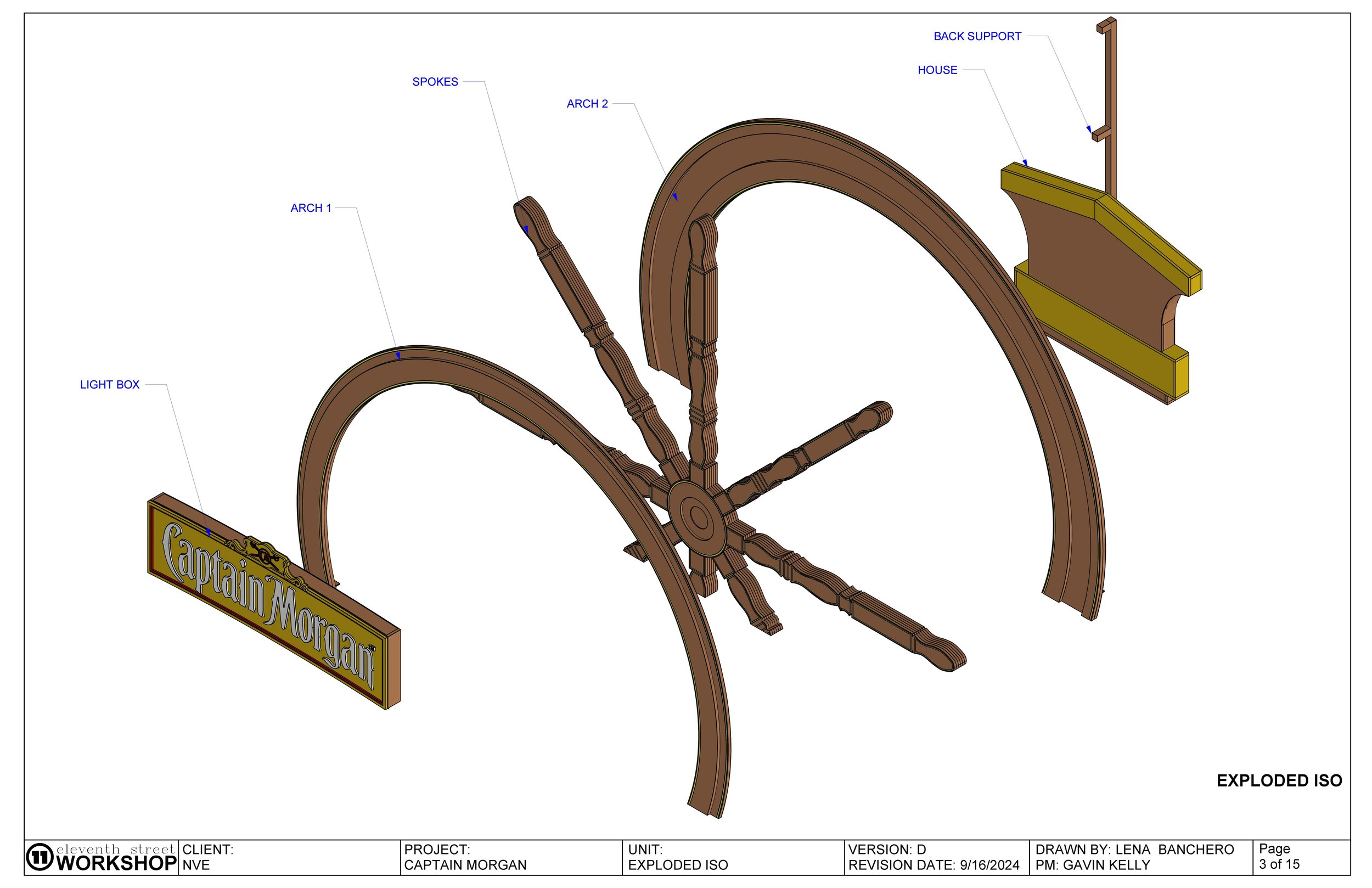

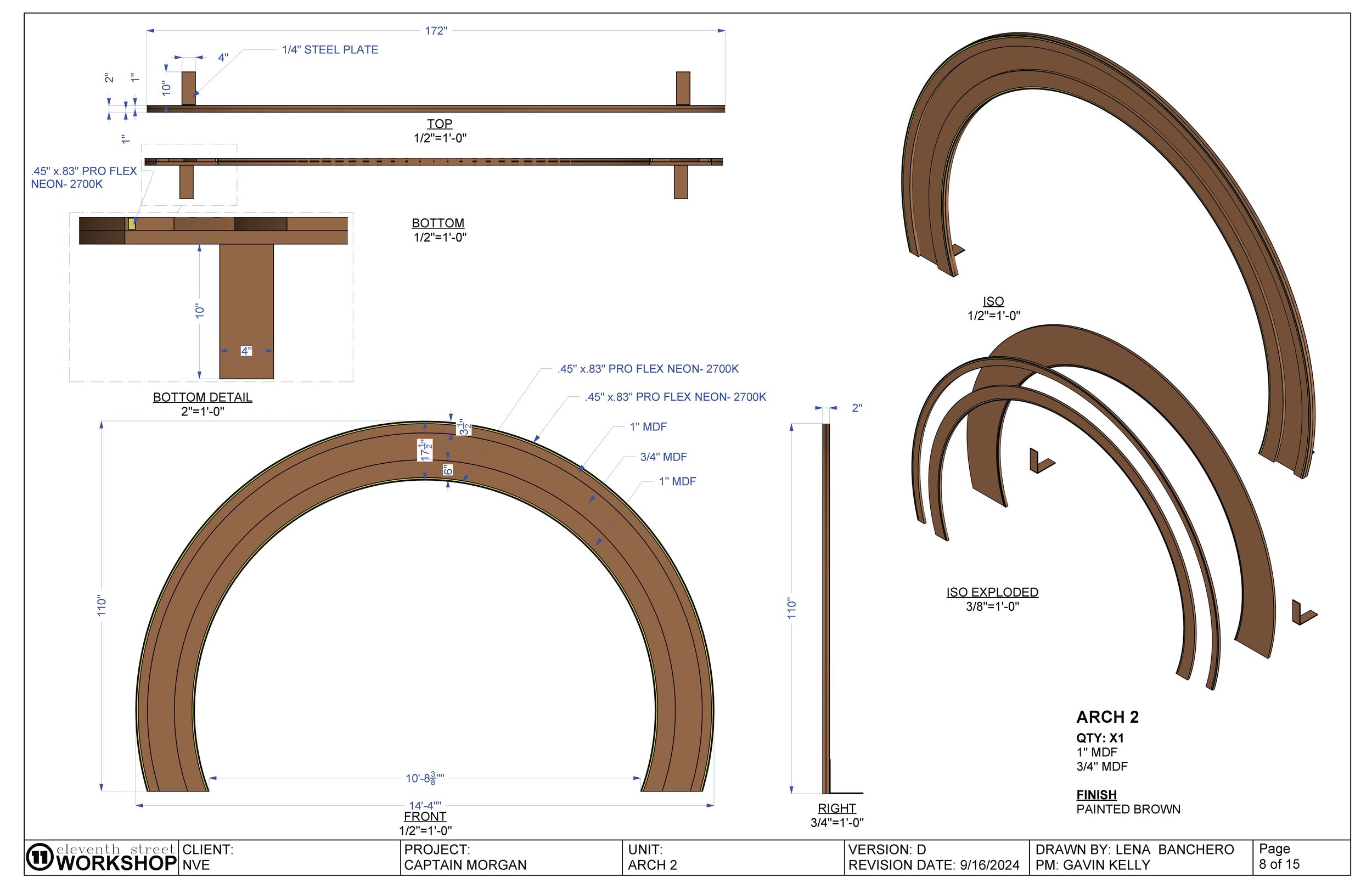

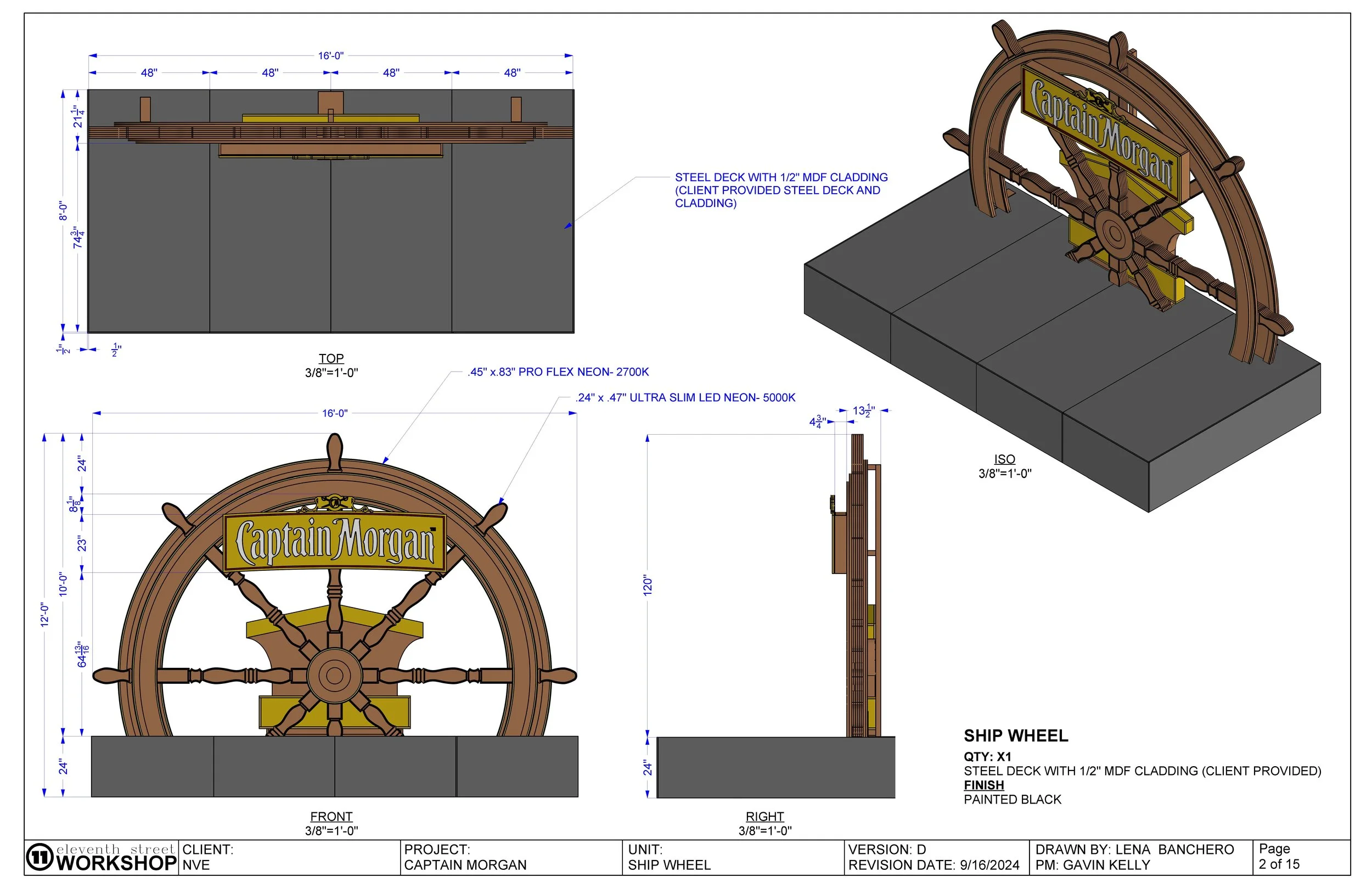

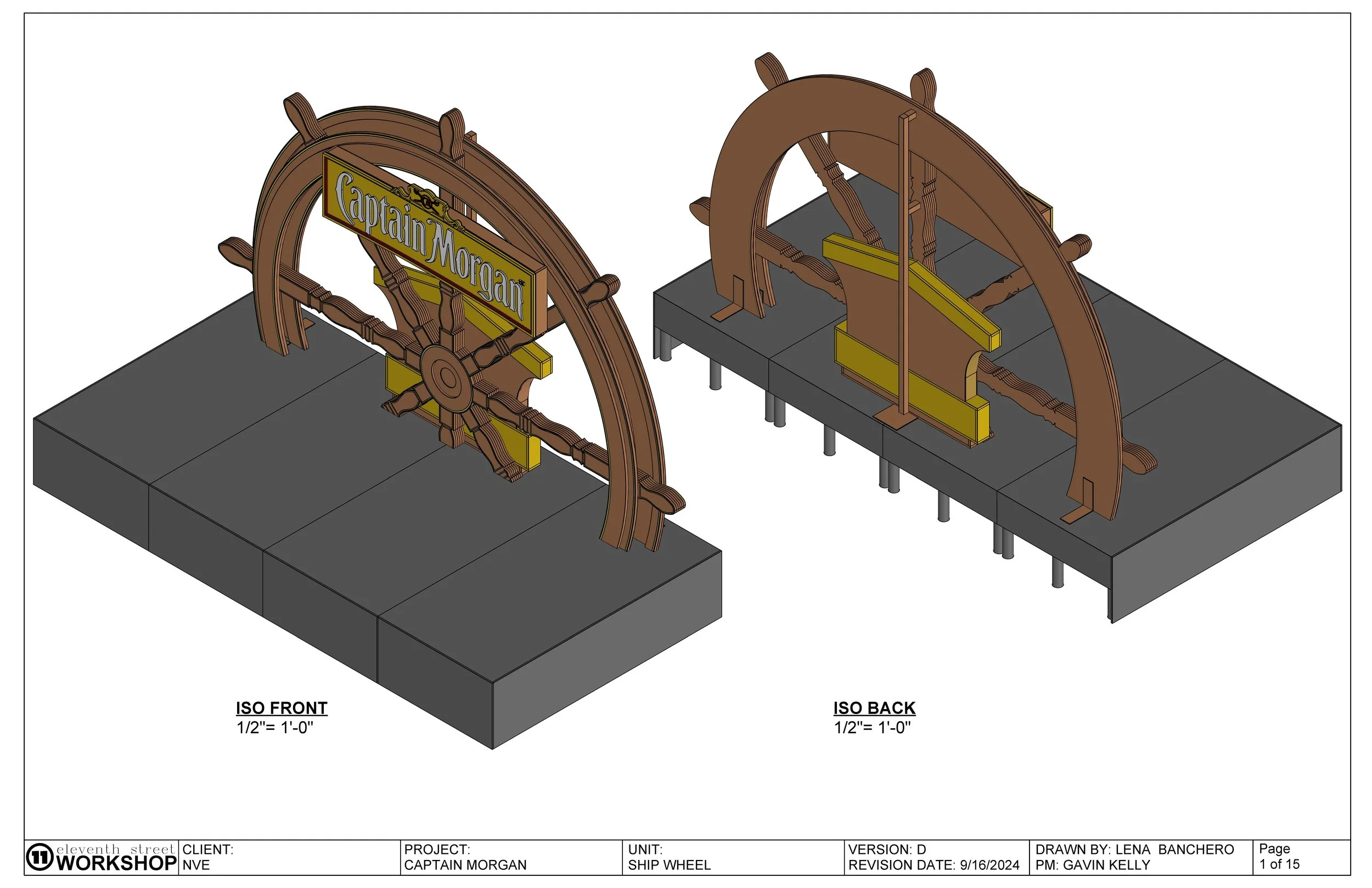

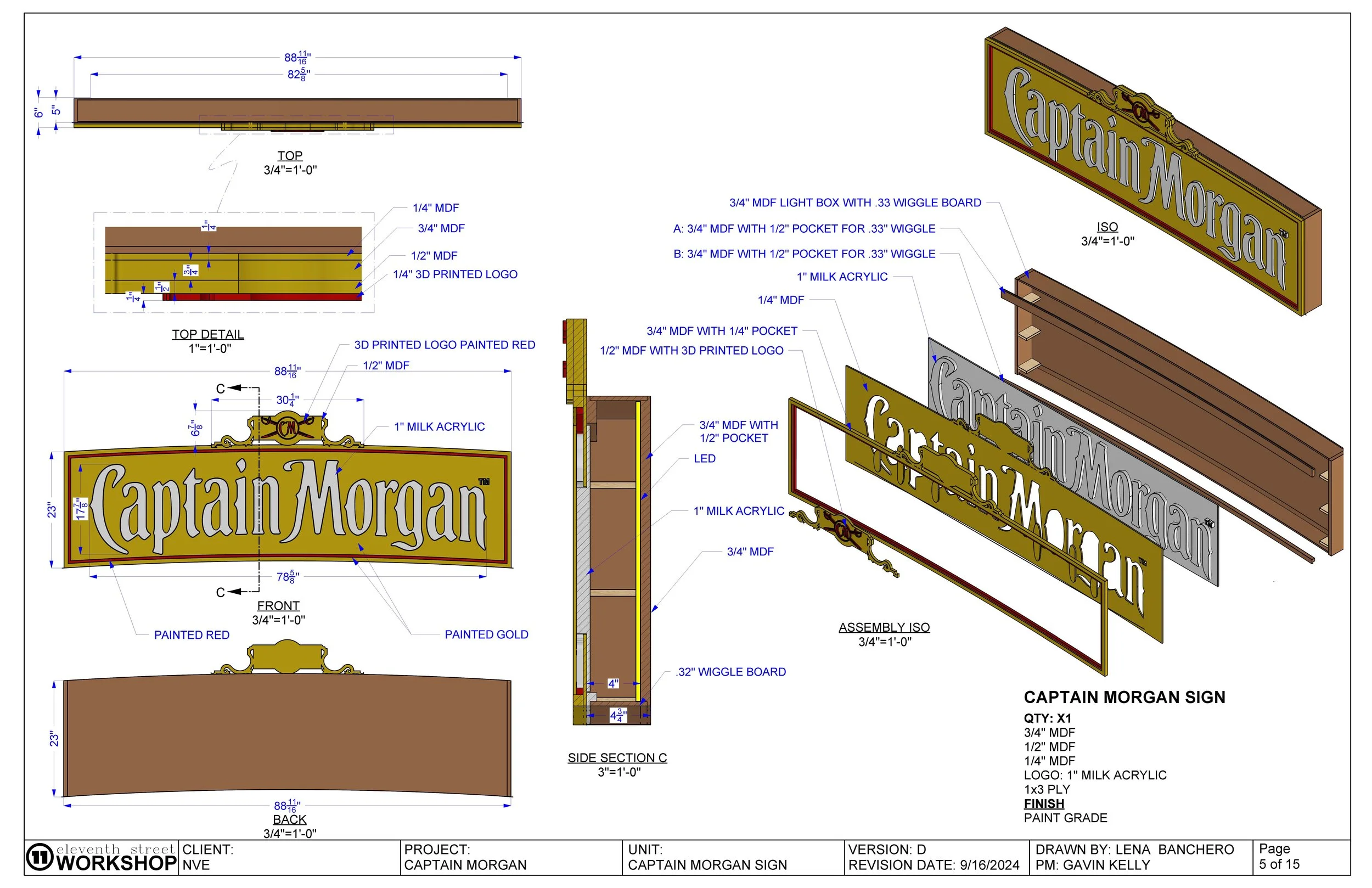

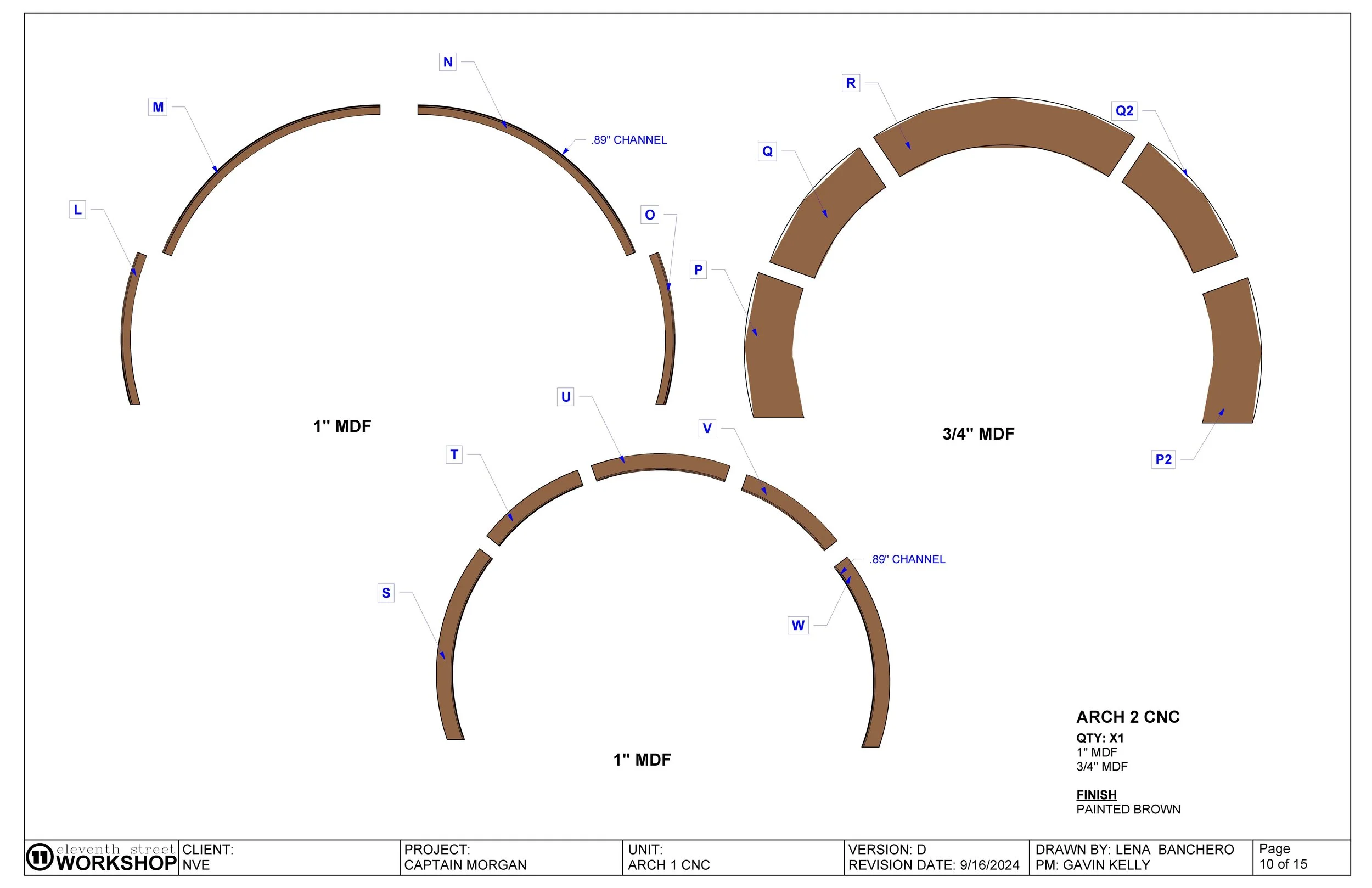

Integrating Pro Flex LED neon and an LED lightbox, I created a 3D model of the build methodology for this gigantic ship wheel, specifying and creating CNC parts, material thicknesses, and lighting installation.


PRODUCTION TEAM

Design: NVE
Fabrication: 11th Street Workshop
Project manager: Gavin Kelly
Director of Digital Fabrication: Andy Wegman
3D Technical Design: Lena Banchero
